Davis Boyle Mouth Gag Complete Set
⚡ Ready Stock for Immediate Dispatch
🛡️ Direct Replacement Warranty
🏛️ UPA Approved & Coded
📜 25+ Years of Clinical Expertise

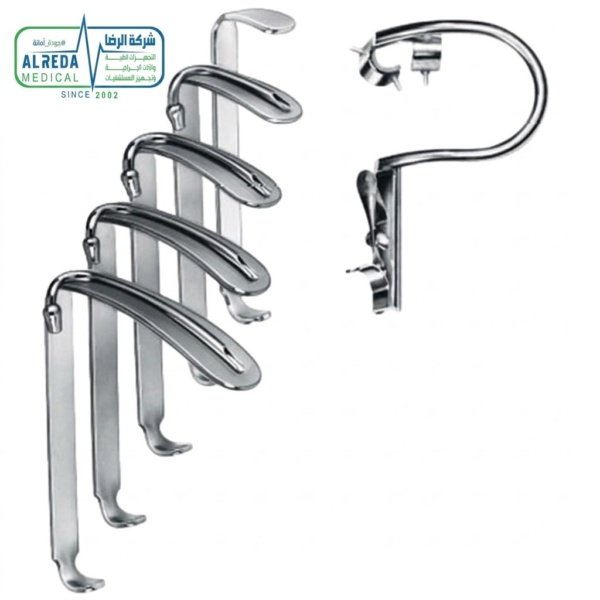

Davis-Boyle Mouth Gag Complete Set by Alreda Medical Equipment. Engineered for optimal oropharyngeal visualization and jaw stabilization during tonsillectomy, adenoidectomy, cleft palate repair, and oral-maxillofacial procedures. The complete system includes a self-retaining curved frame and a full set of 5 interchangeable tongue depressor blades featuring integrated channels for securing the endotracheal tube without obstruction. Forged from high-tensile martensitic stainless steel (AISI 420/440C) autoclave-proof up to 134°C. Officially approved and coded by the Egyptian Unified Procurement Authority (UPA) with an instant direct replacement warranty.
- Description
Description
The Davis-Boyle Mouth Gag Complete Set by Alreda Medical Equipment & Surgical Instruments is the clinical gold standard for oropharyngeal exposure in ENT suites, tonsillectomy, adenoidectomy, cleft palate reconstruction, and pediatric oral surgery. Designed with an ergonomic arch frame that anchors reliably against the upper maxillary incisors, the mechanism maintains continuous oral opening without slipping. The interchangeable tongue depressor blades feature a dedicated midline recess that shields and stabilizes the endotracheal tube, eliminating the risk of airway compression while providing unobstructed bilateral access to the tonsillar fossae.
Manufacturing Quality Tiers
- German Industry Grade (German Grade): Precision-milled track channels with positive-locking slide latches, atraumatically beveled frame teeth to safeguard dental enamel, anti-glare satin finish for surgical headlight illumination, and total endurance through hundreds of pre-vacuum autoclave cycles without mechanical slack.
- UK Industry Grade (UK Grade): High-tensile British surgical stainless steel providing rigid structural stability against heavy masseter muscle resistance during deep anesthesia, coupled with smooth surface finishing.
- Pakistani First-Grade (Pakistani 1st Grade / Grade A+): Heat-treated surgical stainless steel providing dependable clinical reliability and cost-effective durability for day-care surgical units and outpatient ENT procedural rooms.
Technical Specifications Matrix
| Technical Parameter | Approved Specification |
|---|---|
| Product Nomenclature | Davis-Boyle Mouth Gag (Complete Retractor Set) |
| System Components | 1 Primary Arch Frame + Complete Set of 5 Graduated Tongue Depressor Blades |
| Included Blade Sizes | Size 1 (20×65 mm), Size 2 (22×75 mm), Size 3 (24×85 mm), Size 4 (25×95 mm), Size 5 (26×105 mm) |
| Airway Protection Feature | Integrated Midline Recess Channel for Endotracheal Tube Protection |
| Steel Alloy Standard | Medical-Grade Martensitic Stainless Steel AISI 420 / 440C |
| Manufacturing Grades | German Grade / UK Grade / Pakistani Grade A+ |
| Surface Polish | Anti-Reflective Glare-Free Satin Finish |
| Sterilization Compatibility | Pre-vacuum Steam Autoclave up to 134°C (273°F), Hydrogen Peroxide Plasma, EtO Gas |
| SKU & Regulatory Code | ALR-DBG-SET (UPA Coded & Registered) |
🛡️ Direct Replacement Warranty & Institutional Accreditations
Alreda Medical backs this instrument with a comprehensive Direct Replacement Warranty against manufacturing flaws, blade latch malfunction, frame distortion under tension, or metallurgical corrosion with zero procedural downtime.
- Approved and coded by the Egyptian Unified Procurement Authority (UPA).
- Fully certified under international ISO 13485 and European CE Mark standards.
- Compliant with public healthcare, university hospital, and health insurance tender mandates.
- Immediate Supply: Comprehensive ready inventory available for fast dispatch nationwide.
Frequently Asked Questions (FAQ)
What is the clinical significance of the central groove on the tongue blades?
The central groove accommodates and shields the endotracheal tube in the sagittal midline, preventing accidental lumen occlusion or kinking during surgical maneuvers while maintaining optimal exposure of both tonsillar arches.
Is the Davis-Boyle Mouth Gag Set UPA approved in Egypt?
Yes, it is officially registered and coded with the Egyptian Unified Procurement Authority (UPA) for institutional ENT and pediatric surgical tenders.
What is the recommended cleaning and sterilization procedure for this set?
Disassemble blades from the frame prior to ultrasonic cleaning with neutral pH enzymatic detergent to clear blood and secretions from slide channels. Dry thoroughly, lubricate the locking lever with surgical steam-permeable lubricant, and steam autoclave at 134°C.
