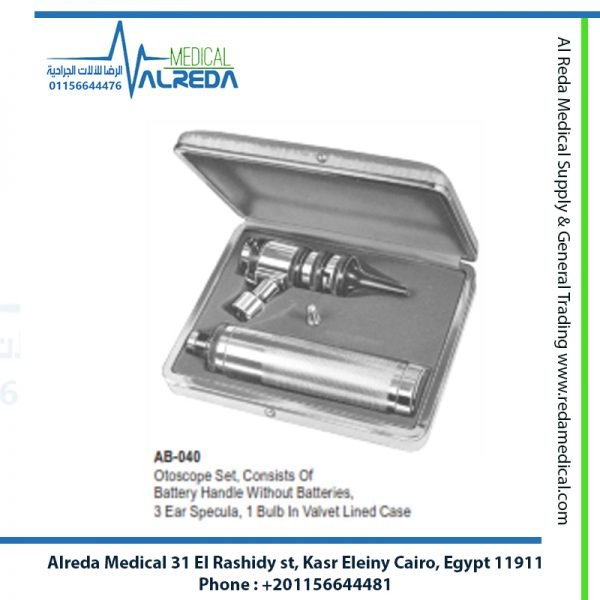

Diagnostic Otoscope Set
Diagnostic Otoscope Set (Fiber Optic ENT Examination & Tympanic Diagnostic Kit) is the clinical gold standard handheld diagnostic instrument set engineered for high-definition visualization of the external auditory canal and tympanic membrane across otolaryngology clinics, pediatric departments, and emergency triage units. Featuring distal circular fiber-optic technology, it delivers a cool, white, shadow-free illumination beam (LED or Xenon) without an obstructive bulb in the optical axis, ensuring 100% unobstructed visibility. Equipped with a scratch-resistant optical glass swivel lens (3X to 4X magnification) that rotates laterally to permit instrumentation under magnification, it includes an integrated pneumatic insufflation port for tympanic mobility testing, a knurled non-slip metal battery handle, and a complete set of reusable, 134°C autoclave-proof ear specula (2.5 mm, 3 mm, 4 mm, and 5 mm). Available in three verified manufacturing quality tiers: German Industry Grade, UK Industry Grade, and Pakistani First-Grade (Grade A+). UPA coded, backed by registered tax e-invoicing and Alreda Medical’s unconditional Direct Replacement Warranty in Cairo.
- Description
Description
⚡Ready Stock for Immediate Dispatch
🛡️Direct Replacement Warranty
🏛️UPA Approved & Coded
🔬134°C Autoclave-Proof Reusable Specula
📄Registered E-Invoice & Hospital Supply
📜25+ Years of Clinical Expertise
What is the Diagnostic Otoscope Set and what is its primary clinical role in medical practice?
The Diagnostic Otoscope Set Fiber Optic ENT Examination Kit is an essential primary care, pediatric, and otolaryngology diagnostic system designed to examine the external acoustic meatus and the tympanic membrane under magnified, high-intensity illumination. By routing light circumferentially through a ring of high-transmission fiber-optic strands, it removes the conventional filament bulb entirely from the clinician’s viewing corridor. This produces an uncompromised, glare-free optical pathway that allows practitioners to accurately evaluate tympanic landmark integrity—such as the umbo, lateral process, pars tensa, and cone of light—while detecting otitis media with effusion, cerumen impaction, canal furunculosis, and eardrum perforations.
Clinical Significance of Diagnostic Otoscope Set in Pediatric & Adult Otoscopy
Otoscopic evaluation is among the most frequent clinical examinations performed worldwide. Accurate differentiation between acute otitis media (AOM) and otitis media with effusion (OME) is critical to prevent antibiotic overprescription and avoid complications such as hearing impairment or mastoiditis. Conventional direct-illumination otoscopes utilize a small lamp projecting directly into the speculum throat; this bulb frequently creates visual shadows, narrows the instrument passage, and emits uncomfortable radiated heat in pediatric ear canals.
The Diagnostic Otoscope Set Fiber Optic ENT Examination Kit overcomes these limitations through its advanced optical engineering. Its cool white fiber-optic light source renders anatomical tissue colors faithfully, enabling clinicians to distinguish between normal pearly-gray eardrums and pathological erythema, cloudiness, or hemotympanum. The optical-grade glass lens provides distortion-free 3X to 4X magnification, while its lateral pivoting swivel mechanism allows seamless introduction of micro-forceps (such as Hartmann alligator forceps) or suction cannulas for foreign body and wax extraction under continuous vision.
Furthermore, the integrated insufflation port provides an airtight coupling for an insufflator bulb, permitting pneumatic otoscopy—the definitive clinical standard for assessing tympanic membrane compliance. Clinicians can observe whether the eardrum moves crisply under applied positive and negative pressure, establishing rapid, reliable detection of middle ear fluid even behind a non-erythematous drum.
Equip your hospital outpatient departments, pediatric suites, and emergency triage rooms by exploring our full range in ENT Instruments & Diagnostic Devices and dedicated Pediatric Surgery Instruments supplied by Alreda Medical.
Manufacturing Quality Tiers for Diagnostic Otoscope Set
To satisfy strict institutional supply protocols across university teaching hospitals, pediatric clinics, and emergency medical complexes, Alreda Medical supplies the Diagnostic Otoscope Set across three certified manufacturing tiers:
1. Diagnostic Otoscope Set – German Industry Grade (German Grade)
Precision-milled box lock hinge that eliminates shank play, laser-aligned jaw serrations for atraumatic micro-occlusion, anti-glare satin finish for bright surgical theater environments, and exceptional resistance to repeated high-pressure autoclave cycles.
Engineered with German high-purity optical fiber bundles providing true anatomical color rendition (CRI >95), a scratch-resistant 4X optical glass swivel lens, a solid chrome-plated brass battery handle with bayonet head locking, and autoclavable specula certified to endure repeated 134°C steam sterilization without thermal discoloration or optical degradation.
2. Diagnostic Otoscope Set – UK Industry Grade (UK Grade)
High-tensile British surgical stainless steel providing responsive spring-back action during ratchet engagement, lightweight ergonomic balance, and reduced operator hand fatigue.
Manufactured with a durable, balanced metallic casing providing ergonomic weight distribution during prolonged outpatient clinic lists, paired with bright fiber-optic LED illumination, an integrated rheostat brightness dial, and high-impact reusable specula resistant to medical enzymatic detergents.
3. Diagnostic Otoscope Set – Pakistani First-Grade (Pakistani 1st Grade / Grade A+)
Heat-treated surgical stainless steel providing dependable clinical reliability and cost-effective durability for day-care procedural rooms, emergency trauma suites, and outpatient clinics.
Robust fiber-optic illumination head with impact-resistant knurled metal handle and multi-size reusable specula in a protective carry case at an economical price point, representing an ideal workhorse for medical students, emergency triage kits, and rural healthcare centers.
Optical Engineering & Component Architecture of Diagnostic Otoscope Set
The clinical diagnostic excellence of the Diagnostic Otoscope Set Fiber Optic ENT Examination Kit centers on its modular, user-focused components:
- Distal Fiber-Optic Ring Lighting: Coherent optical fibers encircle the speculum collar, projecting a uniform, cool cone of light directly into the ear canal without filament shadowing or dark zones.
- Lateral Swivel Optical Window: Sealed with an airtight silicone gasket, the 3X/4X magnifying glass swings laterally out of the axis with fingertip ease, allowing unhindered passage for micro-instruments, curettes, and swabs.
- Interchangeable Reusable Specula (4 Sizes): High-density medical polymer/metal specula sized at 2.5 mm (pediatric/infant), 3.0 mm, 4.0 mm, and 5.0 mm (adult), with non-reflective inner surfaces that eliminate back-glare into the clinician’s eye.
- Knurled Ergonomic Battery Handle: Precision-milled diamond knurling prevents slippage, featuring a dual-contact base that accepts standard AA or C-type alkaline batteries or rechargeable power units.
- Pneumatic Testing Port: A lateral barbed nipple connector designed for leak-free attachment of an insufflation bulb assembly to assess tympanic mobility.
- Protective Hard Travel Case: Custom-fitted foam-lined carrying case that houses the otoscope head, handle, and full specula rack safely during transport.
Technical Specifications Table for Diagnostic Otoscope Set
| Technical Parameter | Clinical & Optical Specification |
|---|---|
| Standard Instrument Pattern | Diagnostic Fiber Optic Otoscope Examination Set |
| Illumination Technology | Distal 360° circular fiber-optic light beam (cool, shadow-free illumination) |
| Light Source & Bulb Rating | High-intensity LED or Xenon bulb (2.5V to 3.5V, true tissue color rendition) |
| Optical Magnification | Scratch-resistant optical glass lens with 3X or 4X magnification, 360° lateral swivel |
| Included Ear Specula Sizes | Set of 4 reusable specula: 2.5 mm (pediatric), 3.0 mm, 4.0 mm, and 5.0 mm (adult) |
| Pneumatic Testing Capability | Integrated airtight insufflation port for tympanic membrane mobility assessment |
| Specula Autoclave Rating | Specula are 100% steam autoclave-proof at 134°C (273°F) and enzymatic wash compatible |
| Regulatory Standards | ISO 13485:2016, CE Mark, UPA (Egyptian Unified Procurement Authority) Coded |
Institutional Supply & UPA Procurement of Diagnostic Otoscope Sets at Alreda Medical
Operating from our central facility at 31 El Rashidy St, Kasr El Aini, Cairo, Alreda Medical maintains verified ready stock of the Diagnostic Otoscope Set Fiber Optic ENT Examination Kit available for immediate nationwide hospital delivery. Every set undergoes rigorous quality control testing for fiber-optic light coherence, lens optical clarity, pneumatic port airtightness, and handle switch reliability. All institutional purchase orders are backed by registered tax e-invoicing, comprehensive Egyptian Unified Procurement Authority (UPA) coding, and our binding Direct Replacement Warranty Policy to ensure continuous clinical readiness across Egyptian outpatient clinics and hospital wards.
Frequently Asked Questions About Diagnostic Otoscope Set Fiber Optic ENT Examination Kit (FAQ)
What is the clinical difference between fiber-optic and direct illumination otoscopes?
Direct illumination otoscopes place a bulb inside the speculum throat, creating visual obstruction and heat. Fiber-optic otoscopes route light circumferentially via optical fibers, providing a completely unobstructed, shadow-free, and cool field of view with 100% optical clearance.
Can the reusable ear specula be sterilized in a standard autoclave?
Yes. The included reusable ear specula are crafted from high-density, heat-resistant medical polymers that withstand repeated steam autoclaving cycles at 134°C (273°F) as well as cold chemical disinfection.
What manufacturing grades are available for Diagnostic Otoscope Sets at Alreda Medical?
Alreda Medical provides German Industry Grade (high-transmission German fiber bundles and 4X scratch-resistant glass lens), UK Industry Grade (ergonomic metallic casing with rheostat brightness control), and Pakistani Grade A+ (cost-effective clinical durability for general clinics).
Is this instrument compliant with the Egyptian Unified Procurement Authority (UPA)?
Yes, it is officially coded and registered with the UPA, supplied alongside registered tax e-invoicing, and backed by our unconditional Direct Replacement Warranty.
